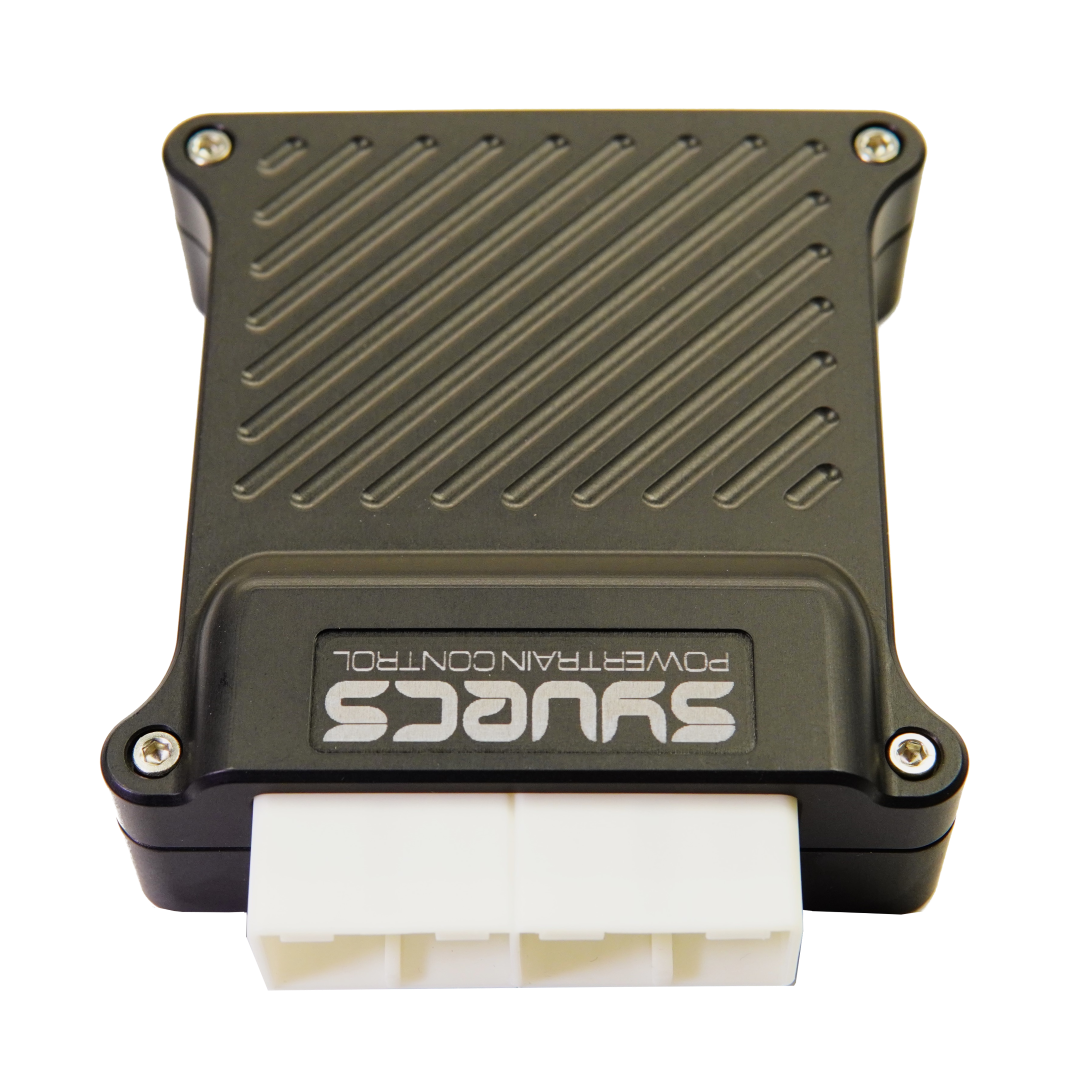

Syvecs AWD Controller (GR Corolla)

This controller is what we couple with our Transfer Case Cooler for extended track sessions as explained here on SavageGeese.

As a result of collaboration between 555 Engineering and Syvecs, future functionality to add the Transfer Case Temperature as a limp mode is being tested.

Pot Controllers are Special Order. Contact for Lead Time.

The Corolla GR version of the controller replicates all the OEM CAN information as well as pick up lots of variable from the OEM Can to link into the control strategies like Steering Angle, Brake Pressure, Rpm, Tps, Lateral G, Yaw, Long G, Speeds, Temperatures and mode switches

The Diff Mode Buttons on the Corolla is used for Map switching so allows users to be able to change between Awd Select 1, 2 and 3 duty maps live to adjust the AWD clamping.  You can also enable the burnout mode to be active when Hazards, Handbrake or external switch is active.

Syvecs also sells an optional loom to allow external Burnout switches to be mounted and Live adjustment potentiometers which gives drivers the ability to adjust the AWD Duty on the move or go 2wd from the flick of a switch. (Rally Cars only and must be ordered with the Unit)

Limp Protection options for large slip, high current, high temps which warn the driver but keep awd active unlike the OEM controllers which shut down the outputs which is not ideal with high horsepower or mid corner!

With the use of the Syvecs Scal Software, users can connect to the Device and adjust over 40 maps to adjust the control of the solenoids/motors used in the AWD systems

Firmware and Software gets updated regularly, check out http://www.syvecs.com/forum/ to make sure you have the latest!

Some of the Maps available

4 x Base Duty Tables

4 x Adders with enable maps:

Left Foot Braking

Front Slip

Rear Slip

Centre Slip

4 x Multipliers with enable maps

Steering Angle

AWD Temp

AWD Pressure

AWD Potentiometer

Tyre Diameter adjustment under sensors

2WD/ Burnout Mode

Via Dedication Switched input

Via Can bus Message

Via OEM Functions

Limiters

Maximum Duty

Launch Control Limit

Duty Rate of Change

Decay/Hold Functions

Limp Mode

Over Current Protection

Over Slip Protection

Over Temp Protection

Cooling Pump control

AWD Cooling pump control logic

Datastream

The Syvecs AWD Unit also has a dedicated Can bus transmit area where users can send variables from the AWD to external control units for monitoring or to OEM Canbus system via custom Identifiers and byte structuring

Sensors / Switches

External sensors can be connected to the AWD module and then linearized in the Syvec's Scal Software
